Napoleon Trivista Primis 50-inch Built-In Electric Fireplace

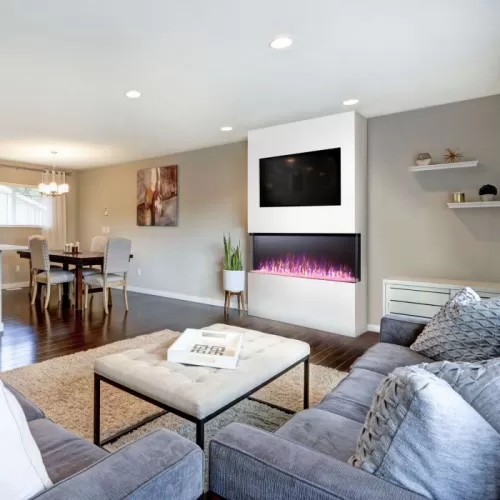

Create a striking built-in focal point with the Napoleon Trivista Primis 50-Inch Electric Fireplace. Its flexible multi-view design can be configured as a three-sided fireplace, a two-sided corner installation, or a single-sided fireplace using the included end panels.

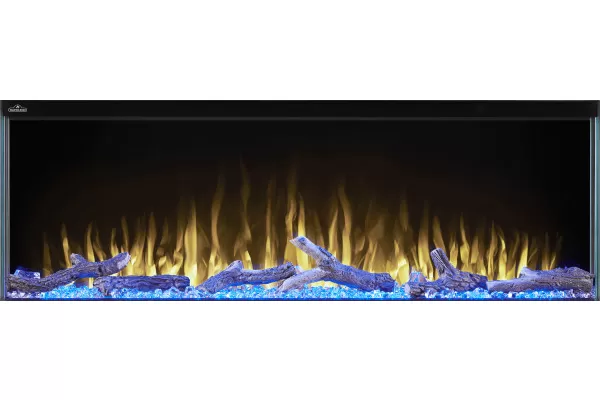

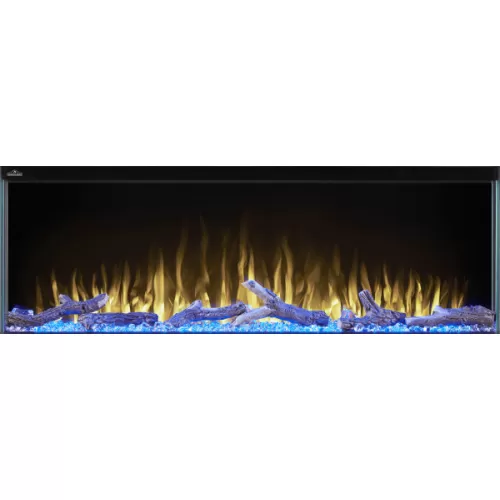

The Trivista Primis includes both a Northern Woods log set and large and small clear crystal media. The logs and crystals can be displayed separately or combined to create a customized firebox with natural texture, reflective sparkle, and added visual depth.

Seven flame color settings use orange, yellow, blue, and combined effects to create a wide range of looks. Adjustable flame brightness and five flame-speed settings allow the display to range from a soft, relaxing glow to a more active fire presentation.

The multicolor ember bed offers 13 individual color choices, along with color-cycle, color-lock, brightness, and breathing-effect settings. Coordinating LED top lights use the same color options, adding another layer of ambient illumination above the flames for a dramatic nighttime display.

The dual-voltage heater provides 5,000 BTUs and 1,500 watts on 120 volts. When professionally hardwired for 240-volt operation, output increases to as much as 10,000 BTUs and 3,000 watts. Blower-only, low-heat, and high-heat modes are available, while the adjustable thermostat offers temperature settings from 64°F to 82°F. The flames, ember bed, and accent lighting can also operate without heat for year-round use.

Fireplace functions can be managed with the included multifunction remote control or the touchscreen control panel. A motion proximity sensor illuminates the control display when movement is detected below the panel, then allows the controls to remain visually discreet when they are not being used. Additional controls include flame speed, heater lockout, and an automatic timer adjustable from 30 minutes to eight hours.

The Napoleon Trivista Primis is designed for fully recessed built-in installation and requires no venting, making it well suited for custom feature walls and multi-sided fireplace projects. This 50-inch model measures 50 inches wide by 21 1/2 inches high by 9 1/2 inches deep, with minimum framing dimensions of 49 inches wide by 21 3/4 inches high by 9 1/4 inches deep and a viewing area of approximately 48 1/2 inches wide by 15 inches high. While both Primis and Trivista Pictura provide multi-sided viewing, Primis offers greater installation flexibility with one-sided, two-sided, or three-sided configurations, compared with Pictura's wall-mounted three-sided design. Primis also adds top lighting, a Northern Woods log set, and crystal media, and can provide up to 10,000 BTUs of supplemental heat when properly configured for 240-volt operation.

The appliance requires a dedicated 15-amp grounded circuit. It may be connected to 120-volt power, while 240-volt operation must be hardwired by a qualified electrician in accordance with applicable electrical codes. Extension cords and relocatable power taps must not be used.

The Napoleon Trivista Primis NEFB50H-3SV is intended for indoor use only and is backed by Napoleon’s 2-year limited warranty. Always consult the installation and operation manual for complete framing, electrical, finishing, clearance, and safety requirements before installation.
