Fire Magic 30-inch Aurora Built-In Gas Grill | 3-Burner

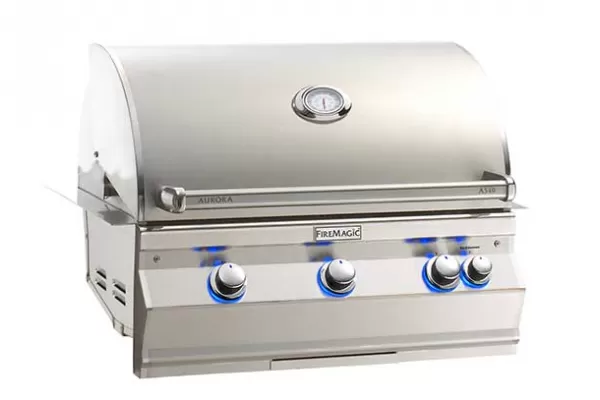

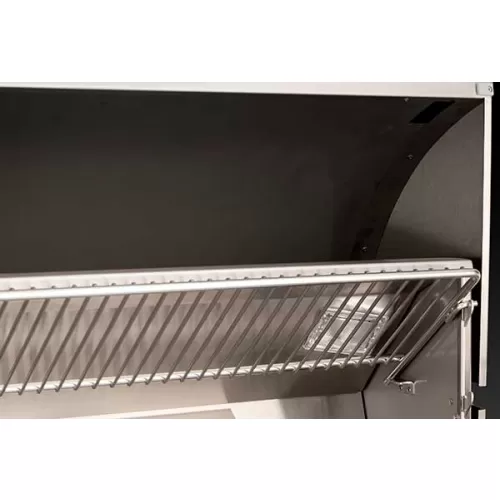

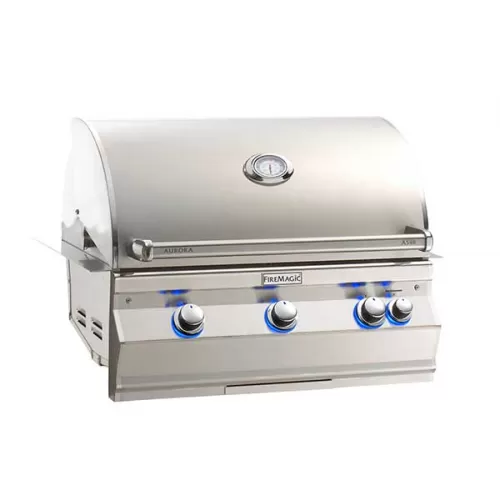

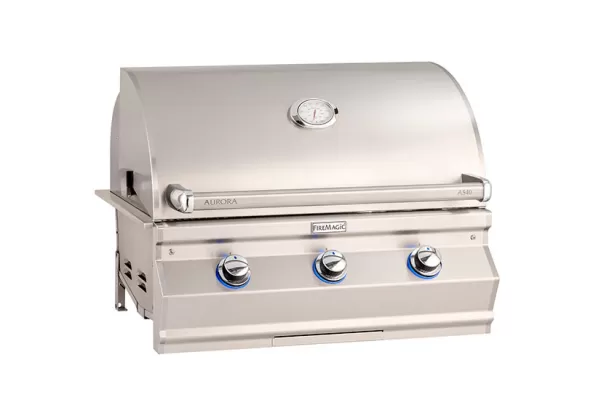

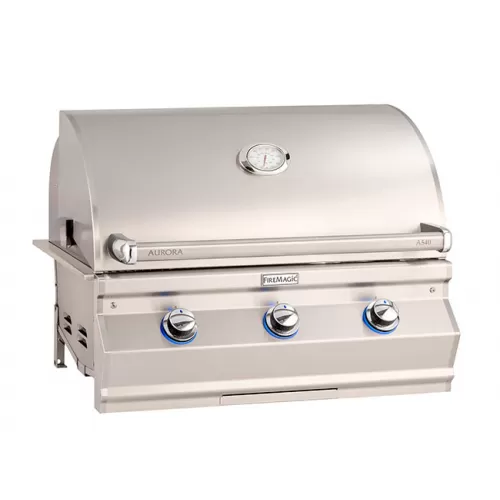

The Fire Magic A540i-7 30-Inch Aurora Built-In Gas Grill combines premium outdoor cooking performance with a compact design suited for custom grill islands. Constructed from heavy-gauge 304 stainless steel, it features a 30-inch x 18-inch primary cooking surface with 540 square inches of grilling space and a 30-inch x 8-inch adjustable warming rack that adds 240 square inches. An angled analog thermometer in the hood provides clear temperature readings up to 1,000°F.
Three cast stainless steel “E” burners produce a combined 63,000 BTUs, providing independent heat control across multiple cooking zones. Fire Magic’s patented Diamond Sear cooking grids increase contact with food for efficient heat transfer and defined sear marks, while heavy-gauge stainless steel Flavor Grids promote even heating, reduce flare-ups, and vaporize drippings to enhance flavor. Additional conveniences include back-lit control knobs, interior halogen lighting, a spring-assisted 90-degree hood, and reliable Push-to-Light hot surface ignition.
Designed for built-in outdoor kitchens, the A540i requires a 32-inch wide x 19½-inch deep x 11½-inch high cutout and is available for natural gas or propane. A 120VAC plug-in electrical connection is required to operate the ignition, illuminated controls, and interior lights, so a properly grounded outdoor GFCI receptacle must be located near the grill. No 240-volt circuit is required.
| Product Details | |
|---|---|
| Backburner BTU's | 18,000 |
| Cooking Surface | 540 sq. inches (30" x 18") |
| Cut Out Dimensions | 32" W x 19 1/2" D x 11 1/2" H |
| Ignition Type | Push-to-light hot surface |
| Material | Stainless Steel |
| Number of Burners | 3 Main Burners |
| Primary Burner BTU's | 63,000 |
| Primary Cooking Surface | 540 sq. inches (30" x 18") |
| Warming Rack Surface | 240 sq. inches (24 inches x 8 inches ) |
| Weight | 200 lbs. |
| WiFi/Bluetooth Enabled | No |
Diamond Sear Cooking Grids
Superior cooking grids that are optimally shaped to evenly distribute heat from the burners to the cooking surface.
Flavor Grids
Top of the line flavor grids allow heat to rise unobstructed and flavors food while protecting the burners from grease and flare ups.

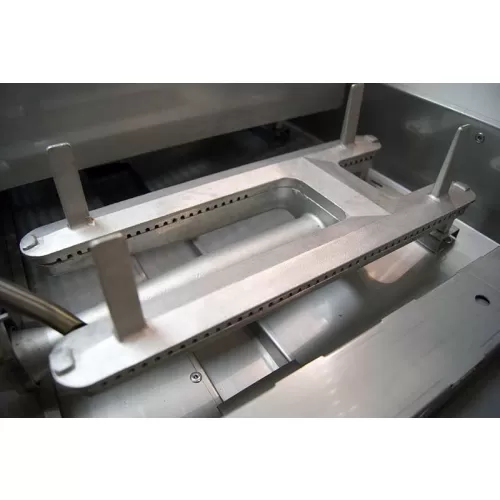

Stainless Steel Burners
304 Stainless Steel burners boast 31,000's BTU's and are protected with a lifetime warranty.

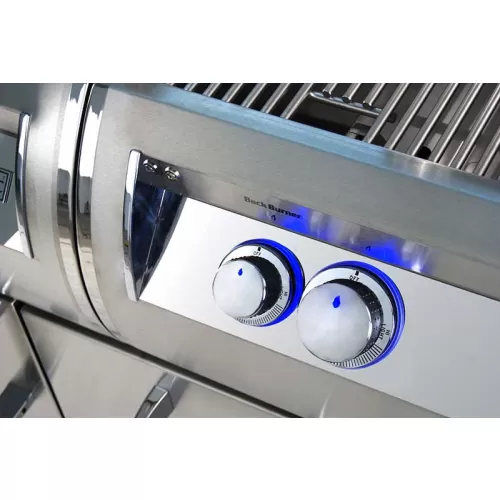

Backlit Polished Knobs
Smooth, seamless knobs feature comfort touch grips and flame icons for convenience and safety.
Analog Thermometer
Polished analog thermometer embedded in the hood of your grill so you can check the temperature without losing any heat.
Optional Backburner
Optional backburner provides additional BTU's for more efficient rotisserie grilling. Includes a stainless steel cover for when not in use.
Halogen Lights
Powerful interior halogen lights allow for late night grilling all year long.

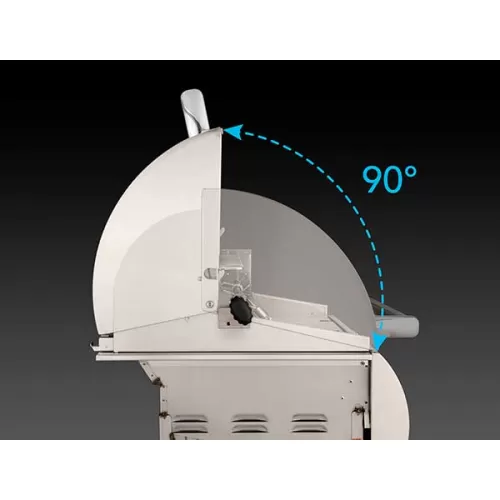

Double Walled Hood
Oven hood features two stainless steel walls for maximum heat retention. Opens to 90 degrees for easy access and efficient exhaust.
- Brand: Fire Magic
- Part: A540I-7
- Stock Status: In Stock
$5,620.50
$6,245.00 -10%The Fire Magic A540i-7 30-Inch Aurora Built-In Gas Grill combines premium outdoor cooking performance with a compact design suited for custom grill islands. Constructed from heavy-gauge 304 stainless steel, it features a 30-inch x 18-inch primary cooking surface with 540 square inches of grilling space and a 30-inch x 8-inch adjustable warming rack that adds 240 square inches. An angled analog thermometer in the hood provides clear temperature readings up to 1,000°F.
Three cast stainless steel “E” burners produce a combined 63,000 BTUs, providing independent heat control across multiple cooking zones. Fire Magic’s patented Diamond Sear cooking grids increase contact with food for efficient heat transfer and defined sear marks, while heavy-gauge stainless steel Flavor Grids promote even heating, reduce flare-ups, and vaporize drippings to enhance flavor. Additional conveniences include back-lit control knobs, interior halogen lighting, a spring-assisted 90-degree hood, and reliable Push-to-Light hot surface ignition.
Designed for built-in outdoor kitchens, the A540i requires a 32-inch wide x 19½-inch deep x 11½-inch high cutout and is available for natural gas or propane. A 120VAC plug-in electrical connection is required to operate the ignition, illuminated controls, and interior lights, so a properly grounded outdoor GFCI receptacle must be located near the grill. No 240-volt circuit is required.
| Product Details | |
|---|---|
| Backburner BTU's | 18,000 |
| Cooking Surface | 540 sq. inches (30" x 18") |
| Cut Out Dimensions | 32" W x 19 1/2" D x 11 1/2" H |
| Ignition Type | Push-to-light hot surface |
| Material | Stainless Steel |
| Number of Burners | 3 Main Burners |
| Primary Burner BTU's | 63,000 |
| Primary Cooking Surface | 540 sq. inches (30" x 18") |
| Warming Rack Surface | 240 sq. inches (24 inches x 8 inches ) |
| Weight | 200 lbs. |
| WiFi/Bluetooth Enabled | No |
Diamond Sear Cooking Grids
Superior cooking grids that are optimally shaped to evenly distribute heat from the burners to the cooking surface.
Flavor Grids
Top of the line flavor grids allow heat to rise unobstructed and flavors food while protecting the burners from grease and flare ups.
Stainless Steel Burners
304 Stainless Steel burners boast 31,000's BTU's and are protected with a lifetime warranty.
Backlit Polished Knobs
Smooth, seamless knobs feature comfort touch grips and flame icons for convenience and safety.
Analog Thermometer
Polished analog thermometer embedded in the hood of your grill so you can check the temperature without losing any heat.
Optional Backburner
Optional backburner provides additional BTU's for more efficient rotisserie grilling. Includes a stainless steel cover for when not in use.
Halogen Lights
Powerful interior halogen lights allow for late night grilling all year long.
Double Walled Hood
Oven hood features two stainless steel walls for maximum heat retention. Opens to 90 degrees for easy access and efficient exhaust.
